Marking & Traceability

Here's a truth I've learned the hard way over 20-plus years of building automation systems: the most expensive part in your plant isn't the one that broke—it's the one you can't identify. I've watched a Tier 1 automotive supplier shut down an entire production line for three days because they couldn't trace which lot of castings contained a metallurgical defect. Three days of downtime, 14,000 parts quarantined, and a sorting team billing $120 per hour around the clock. All because the marking system was an afterthought—a handheld stamp that faded after heat treatment.

At AMD Machines, we've integrated marking and traceability systems into hundreds of production lines across automotive, medical device, aerospace, and electronics manufacturing. We don't just bolt a laser onto a fixture and call it done. We engineer complete traceability solutions—from the marking technology and verification system to the database architecture and MES integration—so every part carries its identity from raw material to end customer.

How Modern Marking and Traceability Systems Work

Every traceability system follows the same core loop: mark the part, verify the mark, store the data, and link it forward. Each step sounds straightforward, but the engineering details determine whether your system is a reliable quality backbone or an expensive headache.

The Marking Process

The system receives a serial number or data string—either generated internally by a serialization engine or pulled from your MES or ERP system. The marking device applies that information to the part surface as human-readable text, a 1D barcode, a 2D data matrix, or some combination of all three. Cycle times range from 0.3 seconds for a simple data matrix to 8–10 seconds for a full multi-line text block with logo on a large part.

Verification

Immediately after marking, a machine vision system reads the code back and grades it against ISO 15415 (2D codes) or ISO 15416 (1D barcodes). This isn't optional—it's the difference between a traceability system and a traceability fantasy. If you mark a million parts and don't verify, you're trusting that every single mark is readable downstream. I've seen unverified marks fail at rates of 2–5%, which means thousands of parts with no usable identity.

Data Linkage

The verified serial number gets written to a database along with a timestamp, station ID, operator (if applicable), and any process data collected at that station. As the part moves through subsequent operations—assembly, testing, inspection—each station reads the code, logs its own data against that serial number, and builds the part's complete genealogy record.

Marking Technologies: Choosing the Right Tool

There's no universal marking technology. The right choice depends on your material, required permanence, cycle time, and downstream environment. Here's how we evaluate each option.

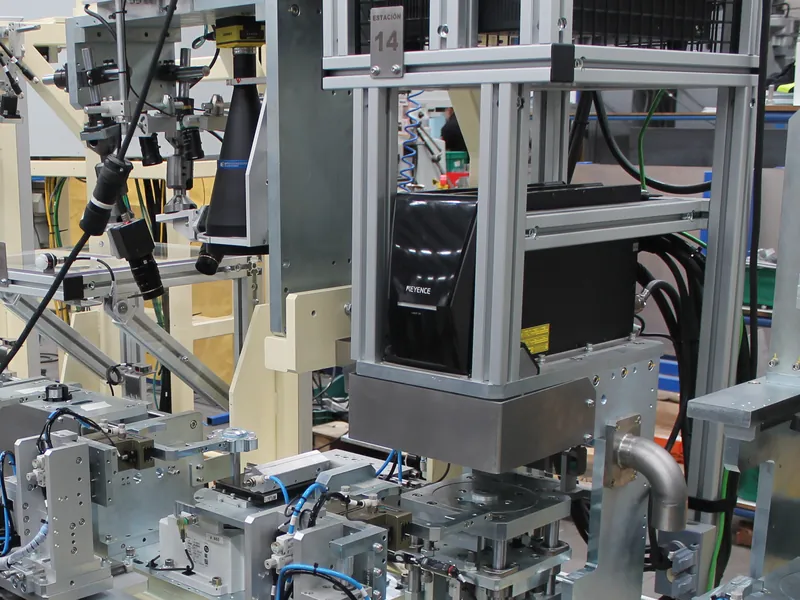

Fiber Laser Marking

Fiber lasers are the workhorse of modern industrial marking, and for good reason. A 20W or 50W IPG, TRUMPF, or SPI fiber laser source produces a beam at 1064 nm wavelength that's absorbed efficiently by metals, many plastics, and some ceramics. We integrate KEYENCE MD-X and MD-F series laser markers, Datalogic AREX series, and Trumpf TruMark systems depending on the application requirements.

What fiber lasers do best: - Annealing marks on stainless steel — A controlled heat input creates a dark oxide layer beneath the surface without removing material. This is the gold standard for medical devices because it maintains the corrosion-resistant passivation layer. We routinely achieve ISO 15415 Grade A marks on 316L stainless surgical instruments. - Engraving on aluminum and steel — Material removal creates a deep, permanent mark readable even after painting, powder coating, and shot blasting. Typical depth is 50–200 microns depending on speed requirements. - High-contrast marks on plastics — Fiber lasers at the right wavelength and pulse parameters create color changes in ABS, polycarbonate, nylon, and PEEK. We've achieved Class A readability on black-on-white automotive interior trim parts at cycle times under 1 second.

Cycle time reality: A GS1 data matrix code at 4mm cell size on bare aluminum takes about 0.8 seconds. A 30-character, two-line alphanumeric string takes 1.5–3 seconds depending on font size and depth. The marking itself is almost never your bottleneck—part handling and verification take longer.

CO2 Laser Marking

CO2 lasers operate at 10,600 nm and are absorbed by organic materials, glass, and certain coatings. We use these on wood, cardboard, leather, rubber, painted surfaces, and glass. A Coherent or Synrad CO2 source in the 10–60W range handles most industrial applications.

The classic use case is marking date codes and lot numbers on food-grade packaging for food and beverage manufacturing—no consumables, no contact, and no risk of contamination. We've integrated CO2 marking into packaging lines running at 200+ units per minute using galvo scan heads that track the moving product.

UV Laser Marking

When fiber lasers generate too much heat (damaging sensitive electronics or medical materials), UV lasers at 355 nm are the answer. The shorter wavelength enables "cold marking" with a smaller heat-affected zone—critical for marking on PCBs near sensitive components, thin-wall medical tubing, and semiconductor wafers. UV marking is slower and more expensive per mark, but it's the only option for certain electronics and medical applications where thermal damage is unacceptable.

Dot Peen Marking

Don't overlook dot peen just because it isn't as glamorous as laser. For heavy industry, castings, forgings, and parts that will be sandblasted, painted, and abused in the field, nothing beats a direct mechanical indent. We integrate Telesis, Ostling, and SIC Marking dot peen systems that hammer marks into steel, aluminum, and titanium with depths of 100–500 microns.

Dot peen marks survive surface treatments that would obliterate inkjet or shallow laser marks. We've built dot peen stations for heavy equipment manufacturers where the marked parts get powder-coated, bead-blasted, and then exposed to years of outdoor service. The marks are still readable 10 years later. Try that with an inkjet print.

Where dot peen wins: Large parts (we've marked engine blocks, transmission housings, and structural steel beams), deep permanent marks, environments where laser safety enclosures aren't practical, and compliance with AIAG B-17 marking standards that require specific indentation depths.

Inkjet Marking

Continuous inkjet (CIJ) and thermal inkjet (TIJ) systems from Videojet, Markem-Imaje, and Domino are the speed kings of industrial marking. When you need date codes, lot numbers, or barcodes on packaging at hundreds of units per minute, inkjet delivers. CIJ systems mark on virtually any surface—smooth, textured, curved, porous, non-porous—with zero contact and minimal maintenance.

The tradeoff is permanence. Inkjet marks can be rubbed, washed, or abraded off. For primary traceability on durable goods, inkjet isn't the answer. But for secondary packaging, case coding, and high-speed packaging lines, it's unbeatable.

Barcode and Data Matrix Standards

Choosing the right code symbology matters more than most people realize. The code type determines how much data you can encode, how small the code can be, and how reliably it reads in real-world conditions.

Data Matrix (ECC 200)

This is our default recommendation for permanent part marking. A Data Matrix code can encode up to 2,335 alphanumeric characters in a square grid as small as 2mm × 2mm. The ECC 200 error correction algorithm allows readability even when up to 30% of the code is damaged—critical for marks that will endure machining, heat treatment, or surface finishing.

Every automotive AIAG traceability standard and the FDA's UDI (Unique Device Identification) requirement for medical devices specifies Data Matrix as the preferred symbology. If you're starting from scratch, use Data Matrix.

QR Codes

QR codes hold more data than Data Matrix (up to 4,296 alphanumeric characters) and are ubiquitous in consumer applications. We use them in manufacturing when the mark needs to be readable by smartphones for field service—think maintenance technicians scanning an equipment serial plate with their phone to pull up service history.

1D Barcodes

Code 128, Code 39, and Interleaved 2 of 5 still dominate warehouse and logistics applications. They're fast to read with simple laser scanners and work well on labels and packaging. For direct part marking, 1D codes are generally too large to be practical—a Data Matrix containing the same data is 10× smaller.

Verification: The Step Most People Skip

I can't say this strongly enough: an unverified mark is an unreliable mark. We design every traceability system with inline verification using Cognex DataMan 370, Cognex DataMan 8050 handheld verifiers, or Keyence SR-2000 readers.

Verification isn't just "did the reader decode the code." It's a quality grade assessment per ISO 15415 that evaluates:

• Symbol contrast — Is the mark dark enough against the background?
• Modulation — Are the light and dark modules clearly differentiated?
• Axial non-uniformity — Is the mark distorted or skewed?
• Unused error correction — How much of the ECC capacity remains available?
• Fixed pattern damage — Is the finder pattern intact?

The overall grade runs from A (best) to F (fail). We design systems to produce Grade B or better marks and set verification thresholds at Grade C minimum. This provides margin for downstream degradation from coatings, handling wear, and aging.

When a mark fails verification, the system automatically quarantines the part for re-marking or dispositions it per your quality procedure. No unverified parts leave the station—ever.

Real-World Application Examples

Automotive Powertrain Serialization

A Tier 1 powertrain supplier needed serial-level traceability on aluminum transmission valve bodies across five machining operations, one assembly operation, and a final leak test. Each valve body required a 16-character serial number plus a GS1 Data Matrix code readable after machining, washing, and a 180°C aging oven.

We integrated a KEYENCE MD-X2000 fiber laser marker at the first machining operation to engrave a 5mm × 5mm Data Matrix at 100-micron depth. A Cognex DataMan 370 fixed-mount reader at each downstream station reads the code, links the station data (spindle loads, torque values, leak test results), and writes to the plant's MES via OPC UA.

Results: 99.98% first-read rate after all downstream processes, complete part genealogy with 100% linkage across all six stations, and AIAG CQI-12 compliance verified during customer audit. When a machining tool wear issue was detected through SPC, the traceability system identified the 847 affected parts in under 4 minutes—previously, the same containment exercise took 2 days of manual log review.

Medical Device UDI Compliance

An orthopedic implant manufacturer needed to comply with FDA UDI requirements on titanium hip stems and femoral heads. Each implant required a UDI-formatted data matrix code with the device identifier (DI) and production identifier (PI) including lot number, manufacturing date, and expiration date. The marks had to survive passivation, anodizing, and sterilization while maintaining ISO 15415 Grade B readability.

We selected a 20W IPG fiber laser with a specialized annealing parameter set that creates a black oxide mark beneath the titanium surface without disrupting the biocompatible passivation layer. The mark is made in a Class 8 cleanroom-compatible enclosed marking station with HEPA-filtered fume extraction. A Cognex DataMan 8072V inline verifier grades every code immediately after marking and archives the verification image in a 21 CFR Part 11-compliant database.

Results: 100% UDI compliance across 23 implant SKUs, Grade A or B marks on 99.7% of parts (the remaining 0.3% are automatically re-marked), and the system passed FDA inspection without a single observation. The manufacturer estimates the automated system saves 12 labor hours per day versus the previous manual marking and paper-based documentation process.

Aerospace Component Tracking

A defense contractor fabricating machined aluminum structural components for military aircraft needed permanent marking per MIL-STD-130 (identification marking of US military property). Parts undergo anodizing, primer, and topcoat after marking, and the marks must remain readable through all surface treatments and 30+ years of service life.

We engineered a combination dot peen and laser marking station. The dot peen system (Telesis TMM5400) applies deep 2D data matrix codes (300-micron depth) on non-critical surfaces for automated reading, while a fiber laser marks human-readable part numbers, serial numbers, and cage codes on cosmetic surfaces with controlled depth to avoid stress risers.

Results: 100% mark survivability through anodize and paint processes, ISO 15415 Grade B minimum after topcoat, and full AS9100 audit compliance. The dual-technology approach cut marking cycle time from 45 seconds (previously all dot peen) to 18 seconds by using laser for the text-heavy content.

The ROI of Automated Marking and Traceability

Traceability systems pay for themselves in ways that aren't always obvious until something goes wrong—and in manufacturing, something always goes wrong eventually.

Reduced recall scope — Without serial-level traceability, a recall affects every part produced during the suspect time period. With it, you can narrow the recall to only the affected serial numbers. A customer of ours reduced a potential recall from 180,000 parts to 2,300 by querying their traceability database for parts linked to a specific raw material lot. At $8 per part in recall handling costs, that's a savings of over $1.4 million on a single event.

Eliminated manual data entry — We routinely replace paper travelers, manual logbook entries, and Excel-based tracking with automated scan-and-link systems. One assembly plant eliminated 6 hours per shift of manual data recording across their production floor. At $35/hour fully burdened, that's $450,000+ per year.

Customer requirement compliance — Most automotive OEMs now require AIAG-compliant traceability as a condition of doing business. Medical device companies need UDI compliance to sell in the US and EU markets. Non-compliance isn't an option—it's a lost customer.

Warranty cost reduction — When field failures occur, traceability data lets you identify root cause faster and determine the exact scope of affected parts. Customers report 30–50% reductions in warranty investigation time and associated costs.

For a typical single-station laser marking and verification system with MES integration, expect system costs of $45,000–$120,000 depending on the laser technology, enclosure requirements, and integration complexity. Multi-station traceability architectures spanning an entire production line run $150,000–$500,000. Payback periods of 4–12 months are typical once you factor in labor savings, recall risk reduction, and compliance value.

Common Challenges and How We Solve Them

"Our marks don't survive downstream processing." This is the #1 problem we encounter, and it usually means the wrong marking technology was specified. We test every marking parameter set against your actual downstream processes—heat treatment, coating, blasting, washing—before finalizing the design. If a laser anneal mark won't survive your 900°C brazing oven, we switch to a deep-engraved or dot peen mark that will.

"Our read rates drop over time." Gradual read rate degradation typically indicates contamination on the reader optics, changes in part surface condition (new material lot, different supplier), or degradation in mark quality due to laser source aging. We build monitoring dashboards that track read rate, verification grade, and decode time trends so problems are caught before they cause production stoppages.

"We can't integrate with our legacy MES." We've connected marking systems to MES platforms ranging from SAP to homegrown Access databases from the 1990s. If your system has any kind of data interface—SQL, CSV, OPC, flat files, socket messaging—we can connect to it. We've even built middleware bridges for truly ancient systems that only speak serial RS-232.

"Our cycle time can't accommodate marking." Parallel processing is the answer. We design systems where marking happens simultaneously with another operation—during robot transfer, during a cooling dwell, or on a parallel conveyor spur. We've integrated marking into robotic cell cycle times with zero additional seconds by marking while the robot performs another task.

"We need to mark on curved or irregular surfaces." Laser marking with a 3D galvo scan head (like the KEYENCE MD-X series with 3-axis control) can focus across a curved surface, maintaining mark quality on cylindrical, spherical, and freeform geometries. For extreme contours, we mount the marking head on a robot arm and use vision-guided positioning to adapt to each part.

Frequently Asked Questions

What's the smallest data matrix code you can reliably mark and read?

We regularly mark and verify data matrix codes down to 2mm × 2mm on polished metal surfaces using fiber lasers and high-resolution Cognex DataMan readers. For very small codes (under 3mm), the cell size approaches 100 microns, which demands precise laser focus, excellent surface consistency, and high-resolution verification cameras. The practical minimum depends on your substrate, surface finish, and downstream processes—we'll test on your actual parts to confirm.

How do laser marking systems handle different part materials or colors in mixed production?

Modern laser markers store multiple parameter sets (recipes) that are selected automatically based on a PLC signal, barcode scan, or RFID read. Each recipe defines the laser power, pulse frequency, speed, and focus appropriate for that material. Switching between recipes takes under 100 milliseconds—there's zero changeover downtime. We've built systems that mark aluminum, steel, and plastic parts on the same line with automatic recipe switching triggered by an upstream vision system that identifies the part type.

What's the difference between laser annealing and laser engraving?

Annealing heats the metal surface enough to create an oxide layer (a color change) without removing material. The surface stays smooth and flat—essential for medical implants, sealing surfaces, and food-contact parts. Engraving vaporizes material to create a physical cavity in the surface. It's more durable and survives harsher post-processing, but the surface disruption may be unacceptable for sealing or biocompatibility requirements. We typically default to annealing for medical and food applications, and engraving for automotive, aerospace, and heavy equipment parts.

How do you ensure traceability data isn't lost if the network goes down?

Every system we build includes local data buffering. If the MES connection drops, the marking station continues operating and stores serialization data, verification images, and process records locally. When the connection restores, the buffered data syncs automatically. We've had systems run in buffered mode for up to 8 hours during network outages without losing a single record. For mission-critical applications, we add redundant local databases on the station PC.

Can you retrofit a traceability system onto an existing production line?

Yes, and we do it regularly. The key is finding the right insertion point where parts are accessible, stationary (or slow-moving), and identifiable. We've retrofitted laser marking stations into existing conveyor gaps as narrow as 300mm, added dot peen markers to existing fixtures using custom mounting brackets, and installed read-only verification points at existing manual workstations. The consulting phase is critical—we study your line layout, cycle times, and data requirements before proposing an integration plan.

What industry standards govern marking and traceability?

The major standards we design to include: ISO 15415 (2D code quality grading), ISO 15416 (1D barcode quality), AIAG B-17 (automotive traceability marking), FDA 21 CFR Part 11 (electronic records for medical/pharma), FDA UDI (unique device identification for medical devices), MIL-STD-130 (military property identification), AS9100 Section 8.5.2 (aerospace identification and traceability), and GS1 standards for data formatting and identifier structure. We design every system to meet the specific standard your customers and regulators require.

What ongoing maintenance do laser marking systems need?

Fiber laser sources are essentially maintenance-free with rated lifetimes of 100,000+ hours (that's over 11 years of 24/7 operation). CO2 lasers require periodic gas refills or tube replacement depending on the source type. The items that need regular attention are the scan lens (clean monthly, replace every 2–5 years depending on environment), the fume extraction filters (replace quarterly), and the verification camera optics (clean weekly to monthly). We provide maintenance schedules and support plans with every system and keep critical spares in stock for fast turnaround.
