Robotic Screwdriving

I'll be honest with you—screwdriving doesn't get the respect it deserves. In thirty-plus years of building assembly machines, I've seen more lines go down because of fastening problems than almost any other operation. A cross-threaded screw, a missed fastener, a torque spec that drifts out of range—any one of these can shut down a line, trigger a customer complaint, or worse, cause a field failure. And yet, screwdriving is often the last thing engineers think about when they're planning an automated assembly system.

At AMD Machines, we've built hundreds of automated screwdriving stations and complete fastening cells. We've learned the hard way what works, what doesn't, and why the difference between a good screwdriving system and a great one comes down to details that most people never think about.

Why Automate Screwdriving?

Let's start with the obvious: manual screwdriving is slow, inconsistent, and a leading source of ergonomic injuries. An operator running a handheld DC driver all day is going to fatigue. By hour six, their grip pressure changes, their angle of approach shifts, and the torque readings start to wander. Add in the simple human tendency to occasionally miss a screw—especially on a product with 12 or 15 identical fasteners—and you've got a quality problem that no amount of training can fully eliminate.

Here's what we typically see when customers move from manual to automated screwdriving:

• 40–60% reduction in fastening cycle time per assembly
• Zero missed fasteners—every screw is counted, verified, and logged
• Cpk values above 1.67 on torque-critical joints (versus Cpk of 0.8–1.0 with manual tools)
• Elimination of cross-threading through controlled engagement speed and angle monitoring
• Full traceability for every fastener on every part—serial number, torque, angle, timestamp, pass/fail

That last point matters more than you might think. In automotive and medical device manufacturing, fastener traceability isn't optional. If a customer calls with a warranty issue on a specific unit, you need to pull the torque data for every joint in that assembly within minutes, not days.

How Automated Screwdriving Works: A Technical Deep Dive

A complete automated screwdriving system has three core subsystems: the feeding system, the driving spindle, and the control/verification layer. Get any one of these wrong and the whole station underperforms. Let me walk through each.

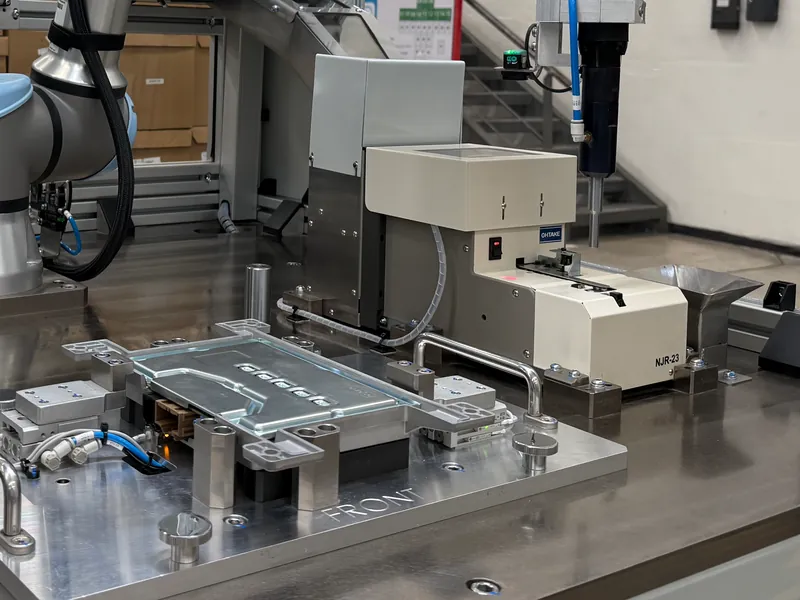

Screw Feeding Systems

This is where most screwdriving problems actually originate—not at the spindle, but at the feeder. If the screw doesn't arrive at the driver bit in the correct orientation, at the right time, every time, nothing else matters.

We select feeding technology based on screw size, geometry, head type, and required feed rate:

• Bowl feeders with inline rail — The workhorse for high-volume, single screw type applications. We use RNA and Service Engineering bowls tuned specifically for the fastener geometry. A properly set up bowl feeder can deliver 40–60 screws per minute on M3–M6 machine screws. The key is getting the track tooling right—we prototype with actual customer fasteners, not just CAD models.

• Blow-feed (pneumatic) delivery — The screw is blown through a flexible tube from a remote feeder to the driver nose. This is ideal when the spindle is mounted on a FANUC or ABB robot arm and needs to reach multiple fastening locations without dragging a feed rail around. Blow-feed works reliably up to about 3 meters of tube length on M2–M5 screws. Beyond that, you start getting jams.

• Stick magazine feeders — Screws are pre-loaded in plastic strip magazines. Great for quick changeover between different screw types—swap the magazine and you're running a different fastener in seconds. We use these frequently on consumer product lines where the same station handles four or five product variants with different screw lengths.

• Escapement-fed rail systems — Screws slide down a gravity rail and are singulated by an escapement mechanism at the pickup point. Simple, reliable, and virtually maintenance-free. Stöger and Weber both make excellent rail systems we integrate regularly.

• Flexible feeders with vision — For specialty fasteners with unusual geometries—shoulder screws, captive washer screws, Torx or hex socket heads that are orientation-sensitive. An Asyril Asycube flex feeder paired with a Cognex In-Sight camera can present any fastener in the correct orientation regardless of how it lands on the platform.

Spindle Technology

The spindle is where the actual fastening happens, and the technology you choose determines your torque accuracy, speed, and monitoring capability.

DC electric servo spindles are the standard for precision fastening. We primarily integrate Atlas Copco QST and MicroTorque spindles, Desoutter CVI3 controllers, and Weber SEC-S series drives. These spindles provide:

• Torque accuracy of ±2–5% of target across the operating range
• Full torque-angle curve capture at 1,000+ samples per second
• Programmable multi-step fastening strategies (soft start → engagement → run-down → final torque)
• Torque ranges from 0.02 Nm (tiny electronics screws) to 50+ Nm (structural fasteners)

Multi-spindle heads are where the real throughput gains come from. Instead of driving one screw at a time, a fixed multi-spindle head drives 2, 4, 6, or even 8 screws simultaneously. We build custom multi-spindle heads with individual spindle monitoring—every spindle has its own torque-angle controller, so if one fastener fails, you know exactly which one and why.

On a recent appliance project, we built a 4-spindle head that drives all four cover screws on a compressor housing in a single 1.8-second cycle. Manual assembly took 22 seconds for the same four screws. That's a 92% reduction in fastening time for that one operation.

Robotic spindles mount directly to the robot flange—typically a FANUC LR Mate 200iD or a Yaskawa GP7—and the robot positions the spindle at each fastening location in sequence. This approach trades raw speed for flexibility. A single robotic spindle can drive screws at 15 or 20 different locations on the same assembly, following a programmed path. We use this heavily on products with complex geometries or when screw locations change between variants.

Control and Verification

This is the layer that separates a professional screwdriving system from a glorified power tool. Every fastening operation is monitored in real time against defined acceptance windows:

Torque monitoring verifies the final tightening torque falls within the specification window. But final torque alone isn't enough—it doesn't tell you if the screw cross-threaded and then hit target torque against the damaged threads.

Angle monitoring tracks the total rotation from seating to final torque. A screw that cross-threads will show an abnormal angle—too low because it's jammed, or too high because it's spinning freely on stripped threads. We set angle windows on every joint.

Torque-angle curve analysis is the gold standard. The complete torque-vs.-angle signature of each fastening operation is captured, analyzed in real time, and compared against a reference envelope. We can detect:

• Cross-threading (sharp torque rise at wrong angle)
• Stripped threads (torque drops after initial rise)
• Missing washer or gasket (different seating torque signature)
• Wrong screw length (different run-down angle)
• Reused or previously tightened hole (different engagement signature)

Depth monitoring using servo-controlled Z-axis motion or linear encoders confirms the screw is seated flush—no proud or countersunk heads outside specification.

All data is logged per fastener, per assembly, and tied to the part's serial number or barcode. We store this data locally on the PLC or controller and push it to the customer's MES, historian, or cloud database via OPC UA, MQTT, or direct SQL writes.

Real-World Application Examples

Automotive HVAC Module Fastening

A Tier 1 supplier was manually assembling a climate control module with 14 self-tapping screws per unit. The manual process used handheld Atlas Copco Tensor drivers with torque verification, but they were still seeing cross-threading defects at 1,200 PPM and missing occasional fasteners despite poka-yoke fixtures.

We designed a two-station robotic cell with FANUC LR Mate 200iD robots, each carrying a single Atlas Copco QST spindle. Station one drives eight screws on the top housing; station two drives six on the bottom. Both robots use FANUC iRVision to locate screw boss positions, compensating for part-to-part variation of up to ±0.5 mm.

The key innovation was a controlled engagement strategy: the spindle runs in reverse at 50 RPM for 0.3 turns to find the thread start, then drives forward with a soft-start profile before ramping to full run-down speed. This eliminated cross-threading entirely.

Results: 18-second total cycle time (down from 72 seconds manual), zero cross-threading defects in 14 months of production, full torque-angle data for all 14 fasteners on every unit. The system processes 180 units per hour on a single shift and has logged over 22 million verified fastening operations.

Medical Device Enclosure Assembly

A medical device manufacturer needed to assemble a patient monitoring unit with eight M3 screws in the enclosure. FDA regulations required 21 CFR Part 11-compliant electronic records, full lot traceability, and validated torque specifications on every joint.

We built a single-station cell with a 4-spindle simultaneous driving head for the bottom four screws and a Yaskawa GP7 robot with a single spindle for the four top screws at varying locations. A Keyence SR-2000 barcode reader captures the device serial number before fastening begins, and all torque-angle data is tied to that serial record.

The control system runs on an Allen-Bradley CompactLogix PLC with a custom HMI built on Ignition SCADA, providing audit trail, electronic signatures, and tamper-evident data records. Every fastening record includes operator ID, batch number, torque value, angle value, date/time, and pass/fail status.

Results: 24-second cycle time, 100% data capture with zero data integrity gaps across 18 months of production, passed FDA audit on first attempt. The system reduced assembly labor by 75% and eliminated the two most common manual assembly defects: missed screws and over-torqued fasteners.

Consumer Electronics Final Assembly

A consumer electronics company assembling a popular smart home device needed to drive 6 screws of three different types (two M2, two M2.5, two M3) in a single assembly. Manual operators frequently mixed up screw types, causing cosmetic damage and functional failures.

We designed a station with three separate blow-feed channels—one per screw type—feeding a single robotic spindle on a FANUC LR Mate 200iD/4S. The robot follows a programmed path, picking up each screw type from the correct feed nose and driving it at the correct location with the correct torque recipe. A Cognex In-Sight 2800 camera verifies screw head type after each insertion, catching any feed error instantly.

Results: 14-second cycle time for all 6 fasteners, zero mixed-screw defects (previously 800 PPM), and the ability to handle three product color variants without any changeover. Throughput increased from 120 to 240 units per hour.

Common Challenges and How We Solve Them

"Our screws cross-thread constantly." This is the number one complaint we hear. Cross-threading almost always comes from one of three causes: misalignment between the driver bit and the screw boss, too-fast engagement speed, or worn screw bosses from reprocessed parts. We address alignment with compliance spindle mounts or vision-guided positioning, engagement speed with soft-start and reverse-find-thread strategies, and worn bosses with incoming part inspection. On most projects, we eliminate cross-threading entirely.

"We can't keep the feeders running." Feeding reliability is directly tied to fastener consistency. If your screw supplier has head height variation of ±0.15 mm on an M3 screw, the feed track that worked perfectly with the last lot might jam on the next one. We specify tighter fastener tolerances on automation-critical dimensions and design our feed systems with adjustment range to accommodate normal variation. We also recommend customers qualify a single screw supplier and lock the specification.

"We need to handle multiple screw types on one machine." This is increasingly common as products get more complex. Options include multi-channel feed systems with automatic nose switching, quick-change spindle tips, and robotic systems that pick up screws from different feed positions. On a recent project, we handled five different screw types on a single station using a rotary turret with five pre-loaded feed noses.

"Our torque specs are extremely tight." For critical joints—think brake calipers, medical implants, or aerospace fasteners—we use high-accuracy spindles with ±2% torque accuracy and implement statistical process control with real-time Cpk monitoring. If the process starts drifting toward a control limit, the system alerts the operator before it produces a reject. We also run periodic torque audits using calibrated Sturtevant Richmont or CDI click-type torque wrenches against the spindle readings.

"We need data for every single fastener." That's exactly what our systems provide. Every fastener operation generates a data record with torque, angle, depth, timestamps, and pass/fail status. This data can be stored locally, pushed to your MES, or archived to cloud storage. We've built systems that retain per-fastener records for 15+ years to meet automotive and medical retention requirements.

ROI and Business Case

Automated screwdriving delivers strong returns primarily through three mechanisms:

Labor savings are straightforward. A manual screwdriving operator running an 8-hour shift at a fully burdened cost of $55,000/year might complete 150–200 assemblies per shift on a product with 8 fasteners each. An automated system doing the same work runs 400–600 assemblies per shift with no dedicated operator (just shared monitoring). On a two-shift operation, that's $100,000–$110,000/year in labor savings from a single station.

Quality cost reduction is often larger than labor savings. If manual cross-threading and missed fasteners generate a defect rate of 1,500 PPM on 500,000 units/year, and each defect costs $15 in rework or scrap, that's $11,250/year in direct quality costs—plus the customer complaint and containment costs that can easily run 5–10x higher. Automated screwdriving with torque-angle monitoring typically achieves sub-50 PPM fastening defect rates.

Throughput improvement enables revenue growth. If you're capacity-constrained and turning away orders, the revenue enabled by a 2–3x throughput increase on the fastening bottleneck can dwarf the equipment cost.

A typical single-station automated screwdriving cell costs $80,000–$200,000 depending on complexity. Multi-spindle stations and robotic cells range from $150,000–$400,000. At these price points, payback periods of 8–18 months are typical on two-shift operations. For high-volume applications, we've seen payback in under 6 months.

Frequently Asked Questions

What torque range can automated screwdriving systems handle?

Our systems cover the full spectrum—from 0.02 Nm on M1.4 micro-screws in electronics to over 50 Nm on M10 structural fasteners. For the most common range in light assembly (0.5–10 Nm, M2–M6 screws), we typically integrate Atlas Copco MicroTorque or Desoutter CVI3 spindles. For heavier applications, Atlas Copco QST or Weber SEC-S series handles the job.

How fast can a multi-spindle system drive screws?

A 4-spindle simultaneous driving head can complete all four fasteners in 1.5–3 seconds depending on screw length and material. A single robotic spindle driving screws sequentially typically handles one fastener every 2–4 seconds including the pick-and-place motion. The fastest single-spindle systems we've built complete one screw in 0.8 seconds on short M2 fasteners with blow-feed delivery.

Can the system detect cross-threading in real time?

Yes—this is one of the most valuable features of modern torque-angle monitoring. Cross-threading produces a distinctive torque-angle signature: a steep torque rise at an abnormally low angle, or an erratic torque pattern during engagement. Our systems detect these patterns within the first 1–2 turns and immediately stop the spindle, rejecting the assembly before any damage occurs to the screw boss.

What happens when a fastener fails torque verification?

The system automatically flags the assembly and prevents it from advancing to the next station. Depending on the application, the response can be an automatic retry with a new screw, a divert to a rework station, or a hard stop requiring operator intervention. All failed operations are logged with the complete torque-angle curve for root cause analysis. Failed parts are segregated into a locked reject bin to prevent accidental shipment.

How do you handle different screw types on the same assembly?

We have several approaches depending on the situation. For 2–3 screw types, we typically use multi-channel feed systems where each channel delivers a different fastener to the spindle via blow-feed or rail. For more complex situations, robotic systems can pick from different feed positions, or we use rotary turret noses that index to the correct feeder. Automatic bit change is also available for screws requiring different driver tips (Phillips, Torx, hex socket).

What data is captured and stored for each fastener?

Every fastening operation records: final torque value, total angle of rotation, engagement angle, run-down torque, seating torque, complete torque-angle curve (1,000+ data points), cycle start/end timestamps, pass/fail result, spindle ID, and the assembly's serial number. This data is stored locally and can be pushed to your MES via OPC UA, MQTT, Ethernet/IP, or direct database connection. We typically recommend retaining data for a minimum of 10 years for automotive and 15 years for medical device applications.

Do you provide support after installation?

Every screwdriving system ships with operator and maintenance training at our facility. We provide ongoing maintenance and support including remote diagnostics, preventive maintenance programs, and on-site service. We also stock wear items—driver bits, feed track tooling, and spindle cartridges—for fast replacement part delivery. Most wear items can be swapped by your maintenance team in under 15 minutes using the procedures we document during training.
