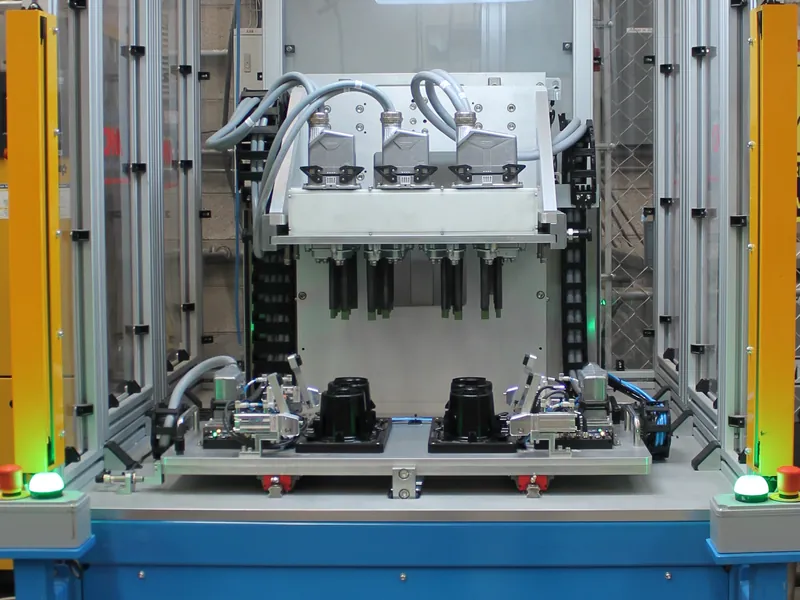

Thermal Joining Systems

If you're joining plastic parts in production, thermal welding isn't just an option — it's probably the best option you haven't fully explored yet. Over the past three decades, we've built hundreds of thermal joining systems at AMD Machines, and here's what we've learned: when you get the process right, you eliminate fasteners, adhesives, cure times, and a whole category of quality headaches. The result is a joint that's often stronger than the parent material, produced in under two seconds, with zero consumables.

That's not marketing fluff. That's what happens when you match the right thermal joining technology to your application and build a system that controls the process variables that actually matter. Let's dig into how these technologies work, where they shine, and what to watch out for.

How Thermal Joining Works: The Engineering Fundamentals

Every thermal joining process follows the same basic principle: generate controlled heat at the joint interface between two thermoplastic components, apply pressure, and allow the molten polymer chains to intermix and solidify. The magic is in how you generate that heat, because each method creates dramatically different thermal profiles that suit different part geometries and materials.

The critical variables across all thermal joining methods are temperature at the interface, pressure applied during melt and hold phases, time in each phase, and collapse distance (how far the parts move together as material melts). Get these four parameters dialed in — and keep them there across thousands of cycles — and you'll produce joints that consistently pass burst testing, pull testing, and long-term fatigue requirements.

Modern servo-driven systems from Branson (Emerson), Dukane, Herrmann Ultrasonics, and Rinco give you closed-loop control over all of these variables, which is a massive upgrade from the pneumatic systems that were standard even fifteen years ago. The difference in process capability is night and day — we're talking Cpk values jumping from 1.0-1.2 to 1.67+ on the same application just by switching to servo actuation with real-time force feedback.

Thermal Joining Technologies: Choosing the Right Process

Ultrasonic Welding

Ultrasonic welding is the workhorse of plastic joining. A piezoelectric converter transforms electrical energy into mechanical vibrations at 15, 20, 30, or 40 kHz, which travel through a booster and horn (sonotrode) into the part. The high-frequency vibration creates intermolecular friction at the joint interface, generating localized heat that melts the plastic in a fraction of a second.

Typical cycle times: 0.2 to 1.5 seconds for the weld itself, 3 to 6 seconds station-to-station with part loading.

Best applications: Parts under 250mm in any dimension, with well-designed energy directors or shear joints. Think automotive sensor housings, medical filter assemblies, electronic enclosures, and consumer product snap-fit replacements.

We recently built a multi-head ultrasonic system for a medical device manufacturer that needed to weld a four-part disposable blood filtration assembly. The challenge was that each weld had to be hermetically sealed to pass a 15 psi air-under-water leak test, and the polycarbonate material had a very narrow process window. We used Herrmann Ultrasonics 35 kHz actuators — the higher frequency gave us a smaller, more precise melt zone that kept the thin-wall sections from overheating. The system runs at 1,200 parts per hour with a reject rate under 0.1%.

Key considerations: Joint design is everything in ultrasonic welding. An energy director that's too large wastes energy and creates flash. Too small, and you don't get enough melt volume for a strong joint. We typically recommend a 60° to 90° triangular energy director with a height of 0.25 to 0.50mm for most applications. For hermetic seals, shear joints outperform energy directors but require tighter part tolerances — you'll need ±0.05mm on the joint diameter.

Hot Plate Welding

Hot plate welding (also called mirror welding or heated tool welding) is the go-to process for large plastic parts. A heated platen — typically aluminum or steel coated with PTFE — is positioned between the two parts. Both halves are pressed against the platen until the joint surfaces melt, the platen retracts, and the parts are pressed together to form the weld.

Typical cycle times: 15 to 45 seconds depending on part size and wall thickness. The melt phase is usually 8 to 15 seconds, changeover 1 to 3 seconds, and join/hold 5 to 15 seconds.

Best applications: Fluid reservoirs, automotive manifolds, HVAC ducts, washing machine tubs, and any part with a complex 3D weld line that needs a hermetic seal. Hot plate welding handles weld lines over 1,500mm long and can join wall thicknesses from 1mm to 12mm+.

One of our favorite projects was a custom automation system for an appliance manufacturer joining PP washer tubs. These parts had a 600mm diameter weld line with a complex contoured profile. The previous process used vibration welding but generated excessive particulate that was contaminating the tub interior. We designed a hot plate system with a non-contact infrared variant — the platen heats the surfaces without touching them, eliminating the stringing and contamination issues. Burst pressure went from 45 psi to 85 psi, and the particulate complaint disappeared entirely.

Key considerations: Platen temperature uniformity is critical — we spec ±2°C across the entire weld surface, which means multi-zone heating with embedded thermocouples. The changeover phase (platen retraction and part closure) needs to happen fast — under 2 seconds ideally — to prevent the melt surface from cooling and forming a skin before the parts come together. Servo-driven platens with linear bearings are a must for consistent results.

Vibration Welding

Vibration welding uses linear reciprocating motion (typically at 120 or 240 Hz with amplitudes of 0.7 to 1.8mm) to generate frictional heat at the joint interface. It's the brute-force method of thermal joining — capable of welding very large parts with long, complex weld lines in 3 to 8 seconds.

Typical cycle times: 3 to 8 seconds weld time. Total station time of 12 to 20 seconds with loading.

Best applications: Automotive intake manifolds (glass-filled nylon), instrument panels, door panels, glove boxes, and any large automotive component with a weld line exceeding 500mm. Vibration welding handles glass-filled materials (up to 40% GF) better than any other thermal process because the mechanical action breaks through the glass-rich surface layer.

We've integrated vibration welders from Branson and Dukane into robotic cells where a FANUC M-20iD loads and unloads parts, and an inline machine vision system using Keyence CV-X series cameras inspects flash height and weld line consistency after every cycle. For one automotive tier-1 supplier, this combination drove their first-pass yield from 94.5% to 99.2% — that's a significant reduction in scrap cost on a part worth $28 each.

Key considerations: Vibration welding generates particulate (flash). If your application is sensitive to contamination — think fluid-handling components or anything with internal electronics — you need to design in flash traps or consider hot plate or infrared welding instead. Also, vibration welding requires a flat joint plane; it can't accommodate joints with significant Z-axis variation the way hot plate welding can.

Spin Welding

Spin welding rotates one part against a stationary part to generate frictional heat at a circular joint interface. It's fast (1 to 3 seconds), simple, and produces extremely strong joints on round parts.

Typical cycle times: 1 to 3 seconds. Total station time under 8 seconds.

Best applications: Oil filters, fuel filters, water filtration cartridges, PVC pipe fittings, aerosol valves, and any cylindrical component with a circular weld. Spin welding is particularly popular in the consumer products and appliance industries for joining caps, closures, and cylindrical housings.

For a filtration manufacturer, we built an eight-station rotary spin welding system that joins filter end caps to pleated media cartridges at 480 parts per hour. Each station uses a servo-driven spindle with torque-based endpoint detection — when the rotational resistance spikes (indicating the melt has solidified to a specific point), the spindle stops. This is far more repeatable than time-based spin welding and handles the slight part-to-part variation in cap height that was causing rejects on their old pneumatic system.

Key considerations: Spin welding only works on circular joints. The parts need to be designed so that angular orientation doesn't matter (or you add a post-weld orientation step). For parts that require angular alignment — say a filter with an inlet at a specific position — you'll need a servo spindle with position control or consider orbital welding instead.

Process Monitoring and Quality Control

Here's where modern thermal joining really separates itself from the old days of "set it and forget it." Today's systems capture full process signatures — force vs. time, distance vs. time, power vs. time — for every single weld. AMD Machines integrates this data with plant-floor MES systems so you've got full traceability from raw material lot to finished part serial number.

The critical process monitoring features we build into every system include:

• Weld-by-distance mode: The system welds until a specific collapse distance is reached, compensating automatically for part-to-part dimensional variation. This is the most repeatable mode for most applications.
• Force/velocity profiling: Servo actuators let you program multi-step force profiles — light contact force during melt, higher force during hold, controlled deceleration to prevent squeeze-out.
• Real-time energy monitoring: Total energy input is tracked and compared against upper and lower limits. Out-of-spec welds are automatically flagged and rejected.
• Statistical process control (SPC): X-bar and R charts generated in real time, with automatic alerts when the process trends toward a control limit — before you start making bad parts.

We connect these monitoring systems to Cognex or Keyence vision systems for post-weld inspection of flash height, part alignment, and cosmetic appearance. The combination of in-process monitoring and post-weld inspection gives you a reject detection rate approaching 100% — which matters enormously in medical and automotive safety applications where escapes aren't an option.

Integration with Assembly Lines

Thermal joining is rarely a standalone process. In most production environments, the welding station is one step in a larger assembly system. AMD Machines specializes in integrating thermal joining into complete automated lines, and we've learned some important lessons about how to do it well.

Part handling matters more than you think. The way parts are loaded into the weld fixture directly affects joint quality. We design fixtures with guided nesting — typically using spring-loaded locators and vacuum-assisted seating — that positions parts to within ±0.1mm before the weld cycle starts. For high-volume lines, FANUC or ABB robots handle the loading, using Omron force-sensing end effectors to confirm proper seating before giving the cycle start signal.

Upstream and downstream integration is where the real value lives. A thermal joining station integrated with leak testing catches defects immediately rather than at final inspection. Adding marking and traceability — a laser-etched serial number or 2D barcode applied right after welding — creates the traceability chain that automotive and medical customers demand.

Quick-change tooling is essential if you're running multiple part variants on the same system. We design our weld fixtures with zero-point clamping systems (Schunk VERO-S or equivalent) that allow a changeover in under 5 minutes with no realignment needed. The recipe management system on the HMI stores all process parameters by part number, so the operator just scans the work order and the system configures itself.

Real-World ROI: The Business Case for Thermal Joining

Let's talk numbers, because that's ultimately what justifies the investment.

Consumables elimination: A fastened assembly using four self-tapping screws costs roughly $0.08 to $0.12 per part in fastener cost alone. On a 500,000 unit/year program, that's $40,000 to $60,000 annually — just in screws. Thermal welding eliminates that entirely. Over a typical 7-year program life, you're looking at $280,000 to $420,000 in consumable savings from a single part number.

Cycle time reduction: Driving four screws takes 6 to 10 seconds. An ultrasonic weld takes 0.5 to 1.5 seconds. On a line running 200,000 units per year at a fully loaded labor rate of $55/hour, that 5 to 8 second reduction saves $15,000 to $24,000 annually in direct labor.

Quality improvement: Screw-driven assemblies commonly have 1-3% defect rates (cross-threading, stripped bosses, missed fasteners). Well-designed thermal joints with servo-controlled welding systems run at 0.05 to 0.2% defect rates. The scrap and rework reduction pays for itself within the first year on most high-volume programs.

Typical payback period: 12 to 18 months on systems running 100,000+ units per year. Faster on higher-volume programs or multi-shift operations.

Common Challenges and How We Solve Them

Material compatibility: Not all plastics weld the same way. Amorphous materials (ABS, PC, PMMA) are generally easier to weld than semi-crystalline materials (PP, PE, nylon) because they have a gradual softening range rather than a sharp melt point. Glass-filled and mineral-filled materials introduce abrasion that wears horns and tooling — we spec titanium horns for high-GF applications and build in tool-life monitoring that alerts maintenance before quality degrades.

Part design issues: We can't count how many times a customer brings us a part where the joint was an afterthought. An energy director that's too far from the horn contact surface, walls that are too thin to transmit ultrasonic energy, or a joint geometry that traps air during the hot plate changeover. We offer upfront DFM (Design for Manufacturability) reviews and will flag joint design issues before tooling is cut — it's far cheaper to modify a 3D model than to rework a production mold.

Flash and aesthetics: Flash is the #1 cosmetic concern in thermal joining. For visible parts, we design flash traps into the joint geometry — small pockets that capture molten material as it's displaced. For critical cosmetic applications, we've used laser deflashing stations integrated downstream from the weld to remove any visible flash without operator intervention.

Multi-material assemblies: Joining dissimilar plastics (say, ABS to PC/ABS) requires careful attention to melt temperature compatibility. As a rule of thumb, the melt temperatures need to be within 20°C of each other for a good thermal weld. When they're not, we'll often recommend alternatives like adhesive dispensing or mechanical fastening for that specific joint.

Frequently Asked Questions

What plastics can be thermally welded?

Most thermoplastics can be welded: ABS, PC, PP, PE, nylon (PA6, PA66), POM, PMMA, PBT, and many engineered blends. Thermosets and silicones cannot be thermally welded because they don't re-melt. Glass-filled materials up to 40% GF content are weldable, though they require process adjustments and more durable tooling. The key requirement is that both parts must be chemically compatible — ideally the same material family.

How strong are thermal welds compared to the base material?

When properly designed and executed, thermal welds reach 85% to 100% of parent material strength on amorphous plastics, and 70% to 90% on semi-crystalline materials. Shear joint designs in ultrasonic welding routinely achieve parent-material strength. Hot plate and vibration welds on unfilled materials typically reach 90%+ of tensile strength. The weld is almost never the failure point in a well-designed part.

What's the minimum and maximum part size for thermal welding?

Ultrasonic welding handles parts from a few millimeters (think hearing aid housings) up to about 250mm. Hot plate and vibration welding can handle parts over 1,000mm in length — we've built hot plate systems for automotive bumper fascia components exceeding 1,500mm. Spin welding works on diameters from 10mm to 500mm. There's a thermal joining process for virtually any part size.

How do I know which thermal joining process is right for my application?

Start with part geometry. Circular joints point to spin welding. Small parts under 250mm with energy directors or shear joints are candidates for ultrasonic. Large parts with complex weld lines usually need hot plate or vibration welding. Material matters too — glass-filled materials favor vibration welding. Contact our engineering team for a process recommendation based on your specific part geometry, material, and production volume.

What kind of maintenance do thermal welding systems require?

Ultrasonic horns are the primary wear item — expect 500,000 to 2,000,000 cycles depending on material and horn material (titanium lasts longest). Hot plate PTFE coatings need periodic replacement, typically every 50,000 to 100,000 cycles. Vibration welding tooling is largely maintenance-free but springs and clamps should be inspected quarterly. All systems benefit from annual calibration of force sensors and displacement transducers. We offer comprehensive maintenance programs that keep your systems running at peak performance.

Can thermal welding be validated for medical device or automotive safety applications?

Absolutely. Thermal welding processes are validated per IQ/OQ/PQ protocols for medical devices and PPAP/APQP for automotive. The servo-driven systems we integrate provide the process data documentation that auditors require — full traceability of force, distance, energy, and time for every weld. We've successfully supported FDA 21 CFR Part 820, ISO 13485, and IATF 16949 validations across dozens of programs.

What does a thermal joining system cost?

A standalone ultrasonic welding station with servo actuation, process monitoring, and safety guarding typically runs $75,000 to $150,000 depending on complexity. Multi-station systems with robotic loading, vision inspection, and leak testing can range from $250,000 to $750,000+. Hot plate and vibration welding systems are generally in the $150,000 to $400,000 range for the welding station alone. Every system we build is custom engineered to your specific application, so contact us for an accurate quote.

Why AMD Machines for Thermal Joining

We've been integrating thermal joining systems for over 30 years, and we've delivered 2,500+ custom machines across automotive, medical, consumer products, and industrial applications. We're not a welder OEM — we're a systems integrator that selects the best welding technology for your application, designs the tooling and fixtures, integrates material handling and quality inspection, and delivers a turnkey system that hits your cycle time, quality, and budget targets.

Our engineering team includes specialists who've designed thermal joining systems for everything from tiny hearing aid components to full-size automotive bumpers. We work with all major welding equipment suppliers — Branson, Dukane, Herrmann, Rinco, Forward Technology — and we'll recommend the platform that's genuinely best for your application, not just the one we have a preferred relationship with.

Contact our team to discuss your thermal joining application. We'll review your part design, recommend the optimal process, and provide a detailed proposal for a system that meets your production requirements.
