If you are evaluating automated labeling stations for a production line, the question is usually whether to print and apply on the part, on the carton, or on the pallet — and whether to do it inline or at a robotic cell. We engineer the station around your part, your line speed, and the data your customers and auditors expect to see on the label.
AMD Machines designs custom marking and traceability systems — print-and-apply labelers, apply-only applicators, and robot-mounted labeling heads — backed by 30+ years of automation experience and more than 2,500 machines delivered. The station you buy from AMD does not just print and stick. It verifies the barcode, confirms placement, and reports a serialized record for every label it issues.
What is an automated labeling station?
An automated labeling station is a machine that prints variable label data and applies the label to a part, carton, or pallet without operator intervention, then verifies the result. The station bundles four subsystems into one sequenced cell:
- A thermal-transfer print engine that renders the variable label image

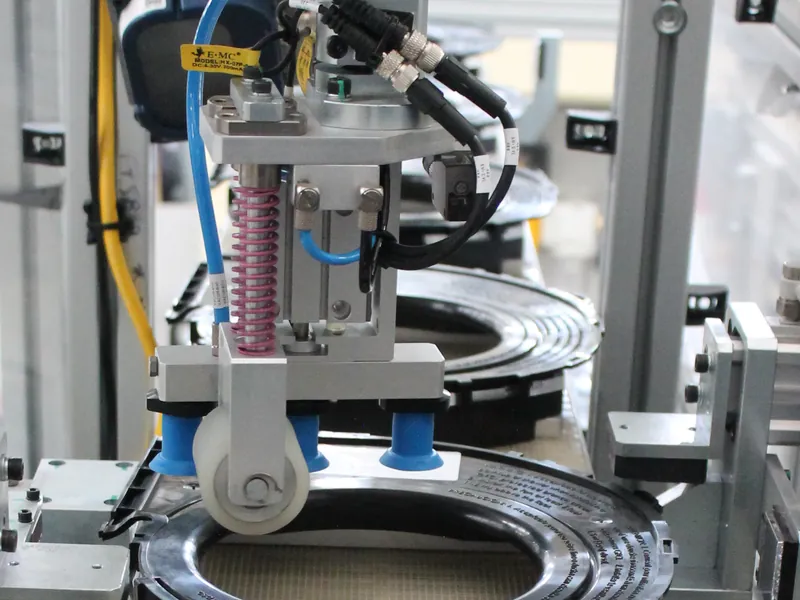

- An applicator — tamp, blow, tamp-blow, wipe-on, corner-wrap, or robot-mounted — that transfers the label to the product
- A vision verifier that grades the barcode and confirms placement
- A controls and data layer that pulls label data from MES/ERP and logs serialized results back
How an automated labeling station works
- Trigger — a photoeye, encoder, or part-present signal tells the station a part has arrived.
- Data request — the controller pulls the next label payload (serial, lot, date, GS1 AIs) from MES or generates it locally.
- Print — the thermal-transfer engine renders the label at 203 or 300 dpi onto pre-die-cut stock.
- Apply — the applicator transfers the label by tamp, blow, tamp-blow, or wipe-on; cycle is paced to line takt.
- Verify — an inline vision camera grades the printed code and confirms placement against a registration feature.
- Sort and log — verified pass parts continue downstream; failed labels are stripped or the part is diverted, and every result is timestamped to the part record.
Label application methods compared
| Applicator | Best for | Typical rate | Notes |
|---|---|---|---|
| Tamp | Inconsistent surfaces, accurate placement on slow parts | 30–60 labels/min | Pneumatic pad extends and presses; tolerant of part-height variation |
| Blow | Fragile or delicate surfaces, no contact required | 60–100 labels/min | Air-jet transfer; ideal for soft packaging, painted surfaces |
| Tamp-blow | Long reach plus non-contact placement | 60–100 labels/min | Extends to clear obstructions, then blows the label on |
| Wipe-on | Flat, high-speed carton or bottle lines | 150–250+ labels/min | Continuous dispense onto moving product; requires tight registration |
| Corner-wrap | Two-panel labels around a carton edge | 30–60 labels/min | Wraps over edge for shipping carton compliance |
| Robotic | Multi-side, mixed-SKU, or odd-form parts | Varies by program | 6-axis arm with end-of-arm applicator; one cell handles many part numbers |
Most production lines pick one applicator and stick with it. Where SKU mix is wide, label positions vary, or robotic palletizing is already in the cell, a robot-mounted head is often the right answer.
Key components and technologies
- Print engines — Zebra ZE521 / ZE511, SATO S84-ex, Honeywell PX940 (with on-board verifier), Datamax-O'Neil
- Applicators — Videojet 9550, Markem-Imaje 2200, Domino M230i, ID Technology, Weber Packaging
- Vision verification — Cognex DataMan 370/470, Keyence SR-2000, Omron MicroHAWK, with grading per ISO/IEC 15415 and 15416
- Controls — Allen-Bradley CompactLogix or Siemens S7-1500, FactoryTalk View or WinCC HMI
- Safety — interlocked guarding and dual-channel circuits per ISO 13849
- Optional add-ons — machine vision inspection for pre-label part verification, direct part marking where a label is not durable enough
Integration, controls, and traceability
A labeling station that prints "the right label most of the time" is not a traceability system. Every AMD station ships with:
- Serialized per-label records — payload, print result, verification grade, timestamp, station ID
- Recipe management — label template, applicator stroke, vision tolerance, and grade thresholds switch on part-number scan
- MES and ERP connectivity — OPC UA, MQTT, REST, or SQL push to Rockwell FactoryTalk, AVEVA, Ignition, SAP, or a custom historian
- Local buffering — the line keeps running through network outages; data syncs on restore
- Audit-grade reporting — exportable verification records for traceability and compliance audits
Industries we serve
- Automotive — AIAG B-10 trading-partner labels on bins, dunnage, and shipping cartons
- Heavy equipment — durable serialized labels for components and finished assemblies
- Electronics — small high-resolution labels for PCBs, modules, and enclosures
- Appliances — model, rating-plate, and energy-label compliance at line speed
- Food and beverage — date and lot coding with vision-verified GS1 barcodes
- Consumer products — multi-SKU print-and-apply for case and pallet labeling
Why AMD Machines
We integrate the print engine, applicator, vision verifier, and data path as one engineered system, not a bag of parts bolted to a frame:
- 30+ years of custom automation, 2,500+ machines delivered
- In-house mechanical, electrical, controls, vision, and robotics — one supplier, one runoff
- Vision verification and Gauge R&R proven against your real labels before shipment
- Pairs cleanly with our palletizing, machine vision, and marking and traceability systems
Have a label spec, a part, and a line speed? That is enough to start. Request a quote and we will scope the station around it.
