Robotic Screwdriving Systems

Automated fastening with closed-loop torque, angle, and depth verification on every joint.

Configurations Robot-mounted, multi-spindle head, fixtured station, gantry
Torque range 0.02–50+ Nm (M1.4 to M10)
Torque accuracy ±2–5% of target, Cpk ≥ 1.67
Spindles Atlas Copco, Desoutter, Bosch Rexroth, Weber, Deprag
Feeding Bowl, blow-feed, stick mag, escapement rail, flex feeder
Robots FANUC, ABB, Yaskawa, KUKA, Universal Robots
Data Per-fastener torque-angle curve, OPC UA / MQTT / SQL to MES
Standards VDI 2862 Class A/B/C, IATF 16949

If you are evaluating robotic screwdriving systems, you are usually trying to fix one of three problems: cross-threaded or missed fasteners reaching the customer, a manual fastening operation that no longer keeps up with takt, or an audit requirement for per-fastener torque data your handheld DC tools can't deliver. We build the cell around whichever is hurting most.

AMD Machines has designed custom screwdriving solutions for 30+ years, with more than 2,500 machines delivered. A robotic screwdriving system from AMD is engineered around your part — boss geometry, fastener spec, joint torque, takt — and shipped with the controls and traceability your customers and auditors expect.

What is a robotic screwdriving system?

A robotic screwdriving system is a production cell that feeds, presents, drives, and verifies threaded fasteners under closed-loop control — no operator handling the screw. A DC servo spindle on a robot arm, multi-spindle head, or fixtured Z-axis runs a programmed torque-angle profile and logs the result for every joint, every part.

Compared to a manual DC driver, an automated cell:

  • Locates the boss the same way every cycle — vision-guided when needed
  • Presents the screw at a repeatable angle, depth, and engagement force
  • Catches cross-thread, strip, missing washer, and wrong-length in the first 1–2 turns
  • Logs a per-fastener record (torque, angle, depth, curve, timestamp) tied to the part serial

How it works

  1. Recipe load — barcode or DataMatrix scan at infeed selects the part recipe; no scan, no cycle.
  2. Feed and singulate — bowl, blow-feed, stick magazine, or vision-fed escapement delivers one screw, correctly oriented, to the driver nose.
  3. Locate — the robot moves to the boss; on dimensionally variable parts a Cognex or Keyence camera offsets the target.
  4. Engage — the spindle reverses 0.2–0.5 turns to find thread start, then ramps to run-down speed under soft-start.
  5. Drive and monitor — torque and angle stream to the controller at 1,000+ samples/sec; the curve is compared to a reject envelope live.
  6. Verify and log — final torque, angle, depth, curve, and pass/fail are written against the part serial and pushed to MES.
  7. Sort — pass parts advance, fails route to rework or a locked reject bin.

Configurations we build

Configuration Best for Typical cycle Notes
Robot-mounted single spindle Variants with 6–30 screws at varied locations 2–4 s per screw incl. move FANUC LR Mate, ABB IRB 1200, Yaskawa GP7, UR10e
Fixed multi-spindle head (2–8) High-volume identical-pattern joints 1.5–3 s for all screws Simultaneous drive; per-spindle torque-angle channels
Rotary-index fixtured station Single-part-number, sub-3 s takt <3 s per part Load / drive / verify on separate dwells
Gantry / Cartesian Z-axis Large parts, long pitch reach 2–4 s per screw Lower cost than a 6-axis robot for grid patterns
Robotic cell with multi-tool turret High mix, 3–6 fastener types 2–4 s per screw Auto bit-change or rotary nose selection

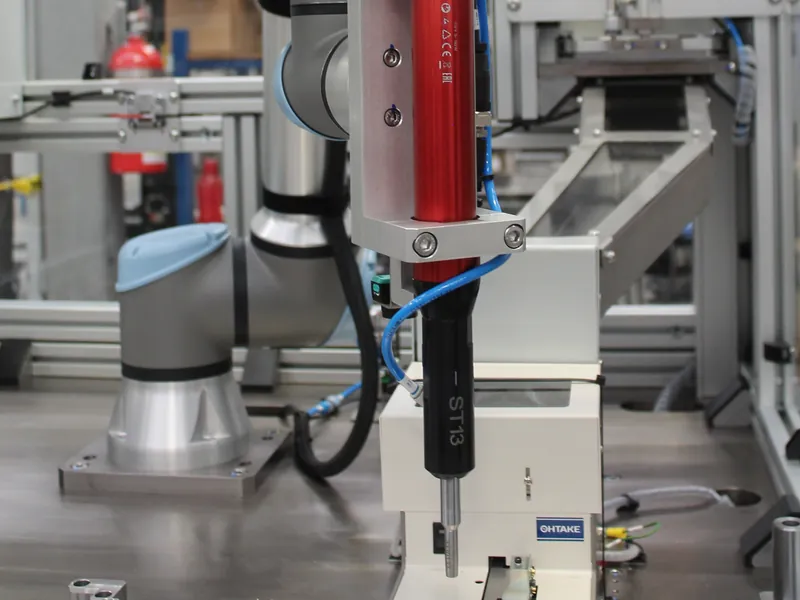

Collaborative (cobot) station Low-volume, operator-shared work 3–5 s per screw UR or FANUC CRX; light/area scanner safety

Many production cells combine approaches — a multi-spindle head for the repetitive pattern, a robotic spindle for the variable screws, sharing one feed bank.

Feeding methods compared

Feeder Best for Typical rate Notes
Bowl + inline rail High-volume single fastener 40–60 screws/min RNA, Service Engineering; tooled to head geometry
Blow-feed (pneumatic) Robot-mounted spindle, multi-location 30–60 screws/min Tube length ≤ ~3 m; ideal M2–M5
Stick magazine Quick changeover, multi-variant 30–50 screws/min Strip-loaded; seconds to swap fastener
Escapement rail Simple, low maintenance 20–40 screws/min Stöger, Weber; gravity + singulator
Flexible feeder + vision Specialty, orientation-sensitive 20–40 screws/min Asyril Asycube + Cognex In-Sight

Key components and technologies

  • DC servo spindle and controller — Atlas Copco QST / MicroTorque, Desoutter CVI3, Weber SEC-S, Bosch Rexroth Nexo, Deprag MINIMAT-EC
  • Robot or motion — FANUC LR Mate, ABB IRB 1200/1300, Yaskawa GP7/GP8, KUKA KR AGILUS, Universal Robots UR10e
  • Feed system — bowl + rail, blow-feed, stick magazine, escapement, or flex feeder, sized to the fastener
  • Vision — Cognex In-Sight 2800 / 8000 or Keyence CV-X for boss location and post-drive verification
  • Controls and HMI — Allen-Bradley CompactLogix or ControlLogix with FactoryTalk View; Siemens S7-1500 with WinCC
  • Safety — dual-channel circuits to ISO 13849-1 PLd/PLe; SICK / Banner light curtains or area scanners
  • Data layer — per-fastener record to MES via OPC UA, MQTT, EtherNet/IP, or SQL; SPC and Cpk on the HMI

Integration, controls, and traceability

A torque-angle curve per joint, tied to the part serial — that's the difference between "the light was green" and an audit-ready fastening record.
  • Per-fastener record — torque, angle, depth, full curve, spindle ID, recipe, operator, timestamp, pass/fail
  • Recipe management — barcode/DataMatrix call loads torque, angle window, depth, and reject envelope per part number
  • SPC — X-bar/R, Cpk, and rule-based trend alarms live on the HMI; flagged before drift reaches the customer
  • MES integration — Rockwell FactoryTalk, AVEVA Wonderware, Ignition, SAP, or custom historian via OPC UA / MQTT / SQL
  • Audit-grade — VDI 2862 fastening class A/B/C/D, IATF 16949 MSA and Gauge R&R records

Industries we serve

  • Automotive — instrument panels, lighting modules, EV battery covers, brake and electrical sub-assemblies
  • Electronics — enclosures, PCB-to-housing fastening, micro-screw M1.4–M2.5 work
  • Appliances — compressor and HVAC housings, multi-screw covers, multi-variant production
  • Heavy equipment — structural fasteners, hydraulic covers, panel and bracket assembly
  • Consumer products — small appliances, power tools, recipe-driven high-mix lines

Why AMD Machines

We are not a spindle reseller bolting an Atlas Copco unit to a frame. We engineer the entire cell in-house — mechanical, electrical, controls, vision, fluid power, robotics, and data — against the part on your bench and the takt on your floor:

  • 30+ years of custom automation and 2,500+ machines delivered
  • Feed, fixture, and engagement design that eliminates cross-threading before runoff
  • Per-fastener Gauge R&R proven against known-good and known-bad master parts before shipment
  • One supplier for the assembly automation, machine vision, and marking and traceability the screwdriving cell integrates with

Have a part print, fastener spec, and takt? That's enough to start. Request a quote and we'll scope the cell around it.

Frequently asked questions

What is a robotic screwdriving system?

A robotic screwdriving system is a custom-engineered machine that feeds, presents, drives, and verifies threaded fasteners under closed-loop control without an operator handling the screw. The robot or multi-spindle head positions a DC servo spindle at each fastening location, the spindle runs a programmed torque-angle profile, and the controller logs the result for every joint.

What is the difference between a robotic screwdriving system and a handheld DC tool?

A handheld DC tool depends on the operator to find the boss, present the screw, hold alignment, and react if the joint goes wrong. A robotic screwdriving system controls all of that automatically: vision finds the boss, the spindle presents at a repeatable angle and force, and a torque-angle envelope catches cross-threads, missing washers, or stripped joints in the first one or two turns. The result is fewer escapes, deterministic cycle time, and a complete data record for every fastener.

What torque range can robotic screwdriving systems handle?

AMD systems cover roughly 0.02 Nm on M1.4 electronics screws up to 50+ Nm on M10 structural fasteners. Most light and mid-range work falls in the 0.5–10 Nm band, M2–M6 — Atlas Copco MicroTorque, Desoutter CVI3, and Weber SEC-S are typical choices, with high-torque QST or Bosch Rexroth Nexo for heavier joints. We size the spindle to your torque target with measurement-system margin, not the other way around.

How are screws fed to the spindle?

Feeding is the single largest driver of system reliability. Bowl feeders with inline rail are the workhorse for high-volume single-fastener applications. Blow-feed pneumatic delivery is preferred when the spindle rides on a robot arm and needs to reach many locations. Stick magazines are best for quick changeover across product variants. Escapement rails are simple and low-maintenance, and flexible feeders with vision handle non-standard or orientation-sensitive fasteners that bowls cannot.

How does the system detect cross-threading and missed fasteners?

The spindle controller captures a full torque-versus-angle curve at over 1,000 samples per second and compares it to a reference envelope for that joint. Cross-threading shows a sharp torque rise at an abnormally low angle. A stripped joint shows torque drop after seating. A missing washer or wrong screw length shows a shifted run-down angle. The controller stops the cycle within the first turn or two and routes the part to reject or rework before the boss is damaged.

Can one station handle multiple screw types and lengths?

Yes. Common approaches include multi-channel blow-feed with automatic nose selection, robot pick from multiple feed positions, rotary turret noses, and automatic bit change for different drive types (Phillips, Torx, hex). Each fastener runs its own recipe — torque, angle window, depth, and reject thresholds — selected from the part barcode or recipe call at the start of the cycle.

What standards do AMD screwdriving systems meet?

We design to VDI 2862 fastening-class requirements (A safety-critical through D non-critical) for automotive programs, IATF 16949 measurement-system rules including MSA and Gauge R&R, and AIAG SPC. Safety circuits are dual-channel to ISO 13849-1 PLd/PLe with light curtains, area scanners, or fenced guarding as the layout requires.

How is fastening data captured and pushed to our MES?

Every joint records final torque, peak torque, total angle, engagement angle, depth, full torque-angle curve, spindle ID, recipe, operator, timestamp, and pass/fail, tied to the part serial or DataMatrix. Data lands locally on the PLC or controller and pushes over OPC UA, MQTT, EtherNet/IP, or direct SQL to Rockwell FactoryTalk, AVEVA Wonderware, Ignition, SAP, or a custom historian. Retention is typically 10 years for automotive programs.

Can a robotic screwdriving cell be retrofitted into an existing line?

Yes. We regularly drop screwdriving cells into existing conveyors, indexing dials, and robotic lines. We survey floor space, conveyor height, takt, and upstream and downstream handoffs, then engineer fixturing, frame, and controls for minimum disruption — many retrofits are installed during a planned shutdown weekend with the new cell on a roll-in base.
