If you are scoping servo press assembly stations for a press-fit, swage, rivet, or stake operation, you are usually trying to fix one of three things: a pneumatic or hydraulic press that "feels right" but still lets bad parts through, an operator-judged Go/No-Go gauge that cannot survive a customer audit, or a Tier 1 demanding 100% force-displacement verification on every cycle. A servo press closes the loop on force AND position at the same time, so the station knows whether the press was good before the part leaves the nest.
AMD Machines has engineered custom servo press integration for more than thirty years and delivered over 2,500 machines. Mechanical, electrical, controls, and data engineering are all in-house, so the press station that ships matches the part on your bench and the takt on your floor.
What is a servo press assembly station?
A servo press assembly station is a production cell built around a closed-loop electric or servo-hydraulic press. The press controls position to a few microns and force to a fraction of a percent, records a force-versus-displacement signature on every cycle, and compares the signature against an acceptance window before the part advances.
- Programmable multi-step profiles — approach, contact, press, dwell, retract
- 100% force-displacement verification, every part, no sampling
- Signature analysis that catches missing, broken, double-stacked, or misoriented parts
- Recipe-driven setpoints for multi-variant production
- Serialized data for SPC, traceability, and audit

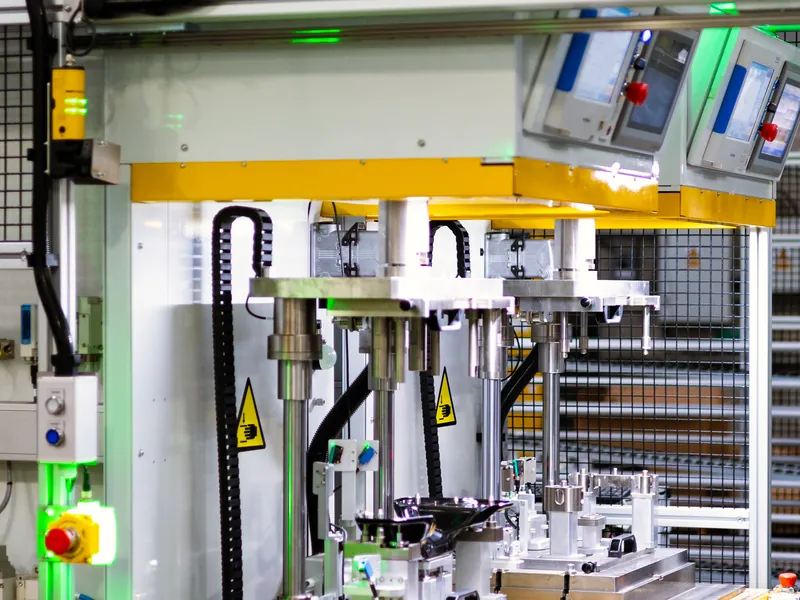

How a servo press assembly station works

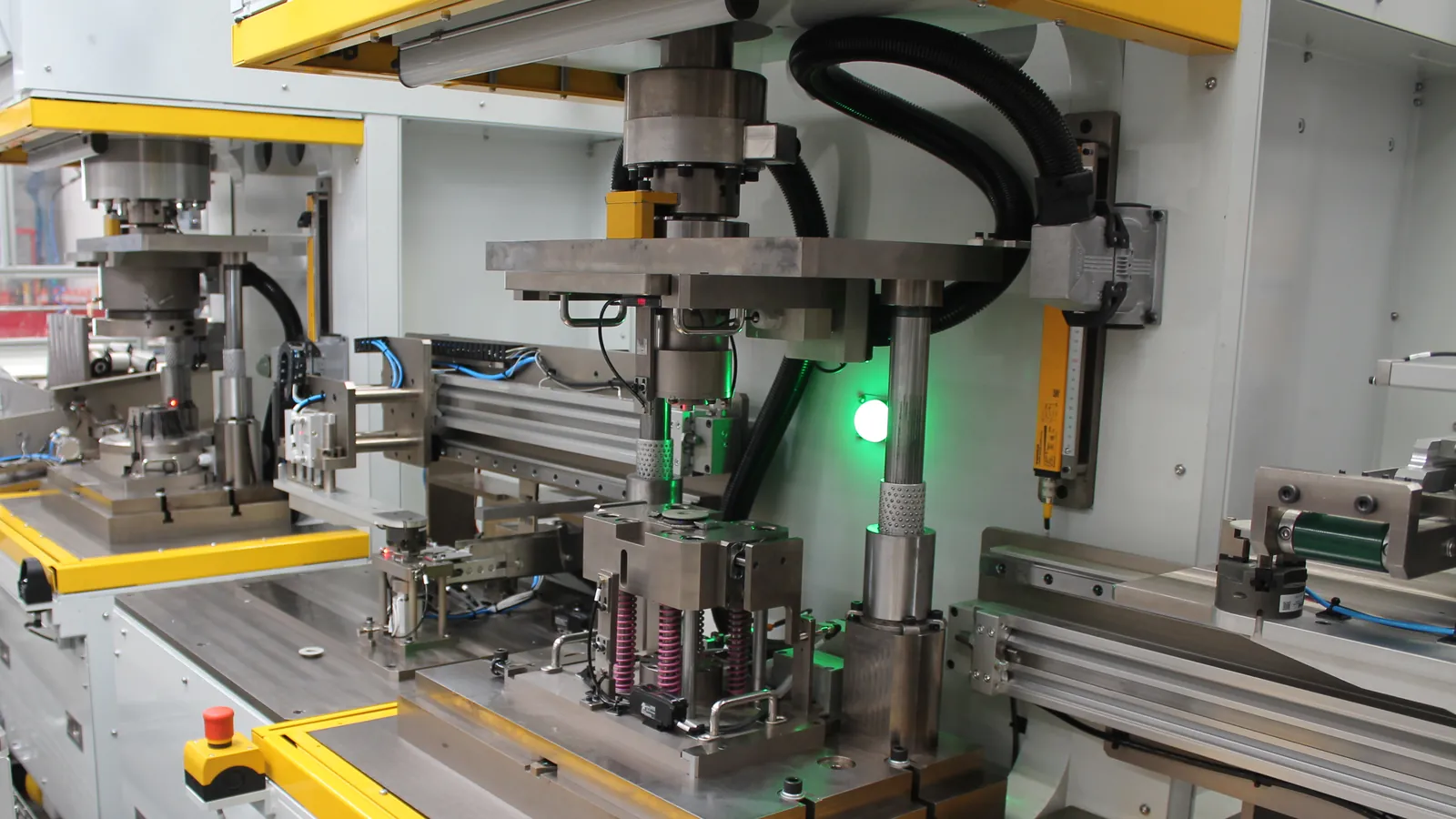

- Part load and locate — the part lands in a rigid nest with hardened locators; pneumatic or servo clamps hold it under repeatable force.
- Component present and verify — vision or presence sensors confirm the insert, bushing, or pin is staged correctly before the ram moves.
- Approach — the ram traverses rapidly to a programmed standoff just above the part.
- Contact and press — the controller switches to closed-loop force or position control and drives the programmed profile to a target depth, peak force, or work value.
- Signature evaluation — the live force-versus-displacement curve is compared in real time against the learned acceptance envelope; any excursion is flagged before the next motion.
- Retract, unload, and sort — the ram returns home, the fixture opens, and the part routes to pass, reject, or rework with the failure code attached.
Servo press types and configurations
| Type | Best for | Typical force / stroke | Notes |
|---|---|---|---|
| Servo-electric (ball screw) | Electronics, small precision mechanical assemblies | 0.5–80 kN / 50–300 mm | Sub-10 µm position, low maintenance, clean; Promess EMAP, Kistler NCFT, Schmidt ServoPress |
| Servo-electric (roller screw) | Mid-force press-fit, swaging, riveting | 10–150 kN / 100–400 mm | Higher dynamic load capacity than ball screw at comparable accuracy |
| Servo-hydraulic | Bearing seating, bushing insertion, large powertrain | 100–300+ kN / 150–500 mm | Compact frame at high force; full signature monitoring with closed-loop valve |
| Pneumohydraulic | Cost-sensitive medium-force press-fit | 5–50 kN / 50–200 mm | TOX Kraftpaket and similar; monitored cycle with end-stroke force/depth windows |
| Multi-station / dial | High-volume small parts with several press steps | Per station | Servo presses combined on a rotary indexer for parallel operations |
| Robot-fed press cell | Mixed-model or large parts that cannot be conveyor-handled | Per press | A robotic cell loads, presses, sorts, and integrates with marking and traceability |
We size the press to the worst-case force with measurement-system margin and the architecture to volume and variant mix — never the other way around.
Key components and technologies
- Press head — Promess EMAP, Kistler NCFT/NCFR, Schmidt ServoPress, TOX ElectricDrive or Kraftpaket, Janome JP, Aries, or Atlas Copco IAS, sized to force and stroke
- Nest and tooling — rigid hardened locators, low-compliance backing, calibrated clamp force, quick-change cassettes for multi-variant lines
- Sensors — integrated load cell and linear encoder; secondary Kistler or HBM force transducer when independent verification is required
- Controls — Promess UltraPRO or Kistler maXYmos as press controller, integrated with Allen-Bradley CompactLogix/ControlLogix or Siemens S7-1500 PLC
- HMI and data — FactoryTalk View, Ignition, or WinCC with live signature plotting and per-part export
- Safety — dual-channel circuits per ISO 13849, light curtains, two-hand controls, and interlocked guarding from Pilz, Sick, or Banner
Integration, controls, and traceability
A press station that does not log data is a press station you cannot defend in an audit. Every AMD servo press cell ships with the records your quality and operations teams need built in, not bolted on.
- Per-cycle signature capture — peak force, work, end position, contact slope, full curve archived per serial number
- Real-time SPC — X-bar/R, Cpk, and rule-based trend alarms on critical press parameters
- MES integration — OPC UA, MQTT, ODBC/SQL, or REST to FactoryTalk, AVEVA, Ignition, SAP, or a custom historian
- Recipe management — barcode-driven part-number recipes load force, position, profile, and acceptance windows on scan
- Audit-grade reporting — controlled-access exports aligned to IATF 16949, PPAP, or AS9100 requirements
Industries we serve
- Automotive — bushings, bearings, valve seats, connector pins, EV module press-fits
- Heavy equipment — hydraulic components, bearings, pin-and-bushing assemblies
- Aerospace and defense — fastener installation, bushing and insert pressing held to FAI and PPAP
- Electronics — press-fit connectors, terminal insertion, sensor seating
- Appliances and consumer products — motor and gearbox subassemblies, snap and press joining
Why AMD Machines
We are not a press reseller bolting a Promess or Kistler unit to a frame. We engineer the entire station — nest, tooling, sensors, controls, and data — against your part and your takt, and qualify it with a Gauge R&R study against known-good and known-bad master parts before shipment.
- 30+ years of custom automation and 2,500+ machines delivered
- In-house fixture, sensor, and signature-window engineering — not an integrator passing through OEM defaults
- One supplier for the custom assembly machines, robotic screwdriving, and functional test stations the press feeds into
- FAT runoff with production components and your masters before the station leaves our floor
Have a part print, a target press force, and a takt time? That is enough to start. Request a quote and we will scope the station around your line.
