Custom Automated Assembly Machines
Turnkey assembly cells and lines engineered around your part geometry, cycle time, and quality targets.
- 30+years in business
- 2,500+machines delivered
- ISO 9001certified
- 3 hoursreply time on weekdays
On this page
At a glance
- Architectures
- Rotary dial, linear transfer, robotic cell, hybrid
- Stations
- 4–24+ per machine
- Cycle time
- ≈1.5–30 s typical
- Joining methods
- Press-fit, screwdriving, welding, dispensing, snap-fit
- Feeding
- Vibratory, centrifugal, flex-feed, tray, magazine
- Robots
- FANUC, ABB, KUKA, Yaskawa, Universal Robots
- Controls
- Allen-Bradley, Siemens, Beckhoff; FactoryTalk / Ignition
- Data
- Serialized; OPC UA / MQTT / SQL to MES
If you are scoping custom automated assembly machines, you are usually solving one of three problems at once: a manual line that cannot hold cycle time, quality escapes the operator cannot consistently catch, or a customer demanding serialized traceability you do not have today. An off-the-shelf assembler will not fix any of them — your part, your tolerances, and your takt are too specific. The machine has to be built around them.
AMD Machines has designed and built custom assembly systems for more than thirty years, with over 2,500 machines delivered. Mechanical, electrical, controls, vision, and robotics engineering are all in-house, so the machine that ships matches the part on your bench and the rate on your floor.
What is a custom automated assembly machine?
A custom automated assembly machine is a production system engineered for one product family — feeding, orienting, joining, verifying, and unloading parts on a fixed cycle, with every operation monitored and every result logged. Nothing about it is off-the-shelf except the underlying components.
- Purpose-built nests and fixtures sized to your part
- Joining methods (press-fit, screwdriving, welding, dispensing) chosen per station
- In-process verification (force, torque, vision, leak) at the source of the operation
- Serialized data on every unit — no sampling, no clipboards
- Architecture sized to your volume: rotary, linear, robotic, or hybrid
How a custom assembly machine works
- Feed and present — bowl, centrifugal, flex, or tray feeders orient components and stage them for pick or transfer.
- Index and locate — a rotary dial, linear pallet, or robot moves the workpiece to each station and clamps it in a rigid, repeatable nest.
- Join and fasten — servo presses, multi-spindle screwdrivers, dispense valves, or weld heads execute the operation with closed-loop force, torque, or volume control.
- Verify in-process — vision, force-displacement signatures, and torque-angle curves confirm each operation against pass/fail envelopes before the next station runs.
- Test — inline leak, functional, or electrical test gates the part against engineering thresholds when required.
- Mark and serialize — laser, dot-peen, or label print-and-apply ties the part to its full assembly record.
- Sort and unload — pass parts route to packout; rejects route to a locked bin with the failure code attached.
Configurations compared
| Configuration | Best for | Typical cycle | Typical stations | Notes |
|---|---|---|---|---|

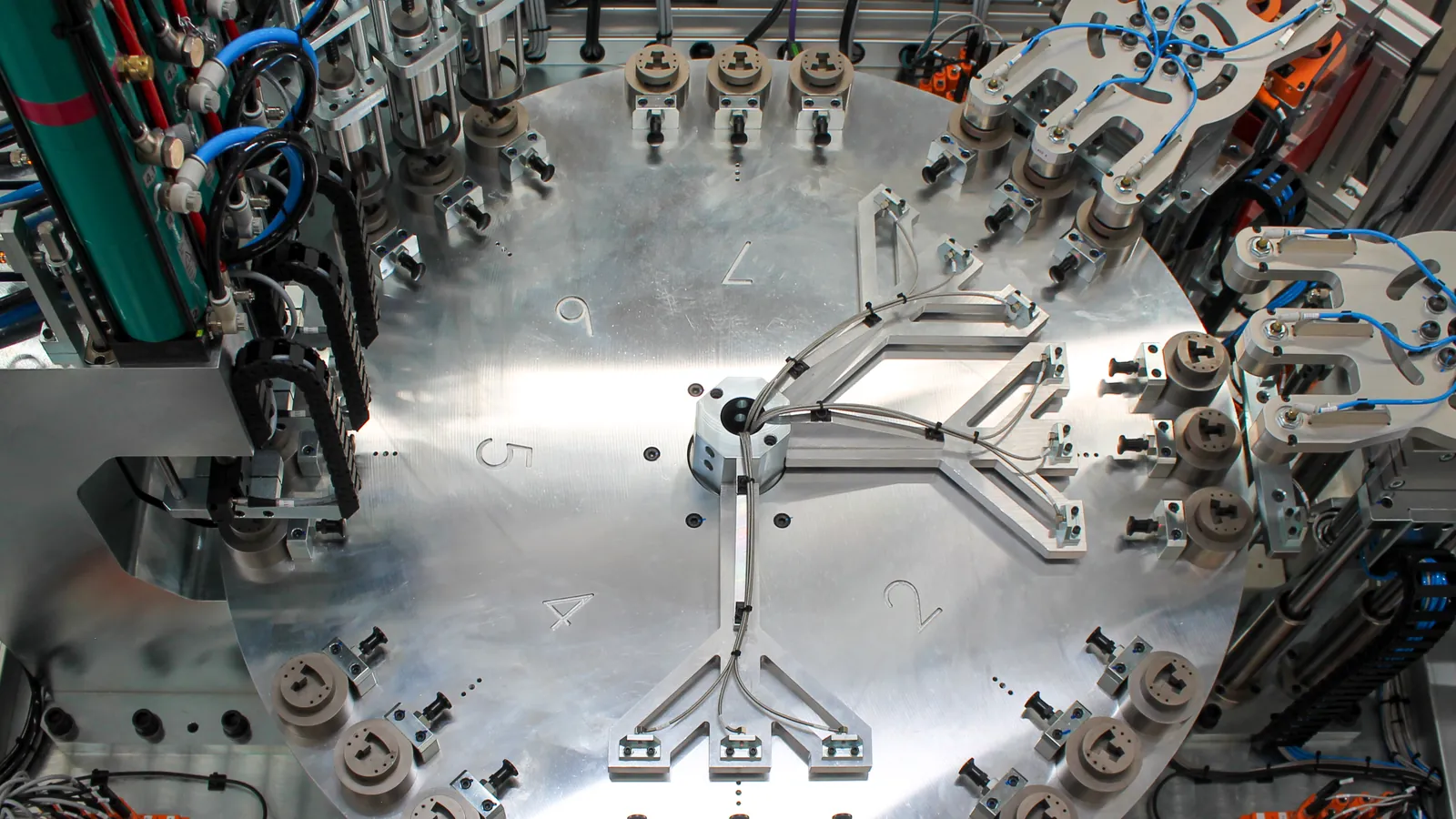

| Rotary dial (indexer) | High-volume, small-to-mid parts, stable design | 1.5–6 s | 4–16 | Parallel stations on a Weiss or Colombo Filippetti cam; fastest architecture per square foot |

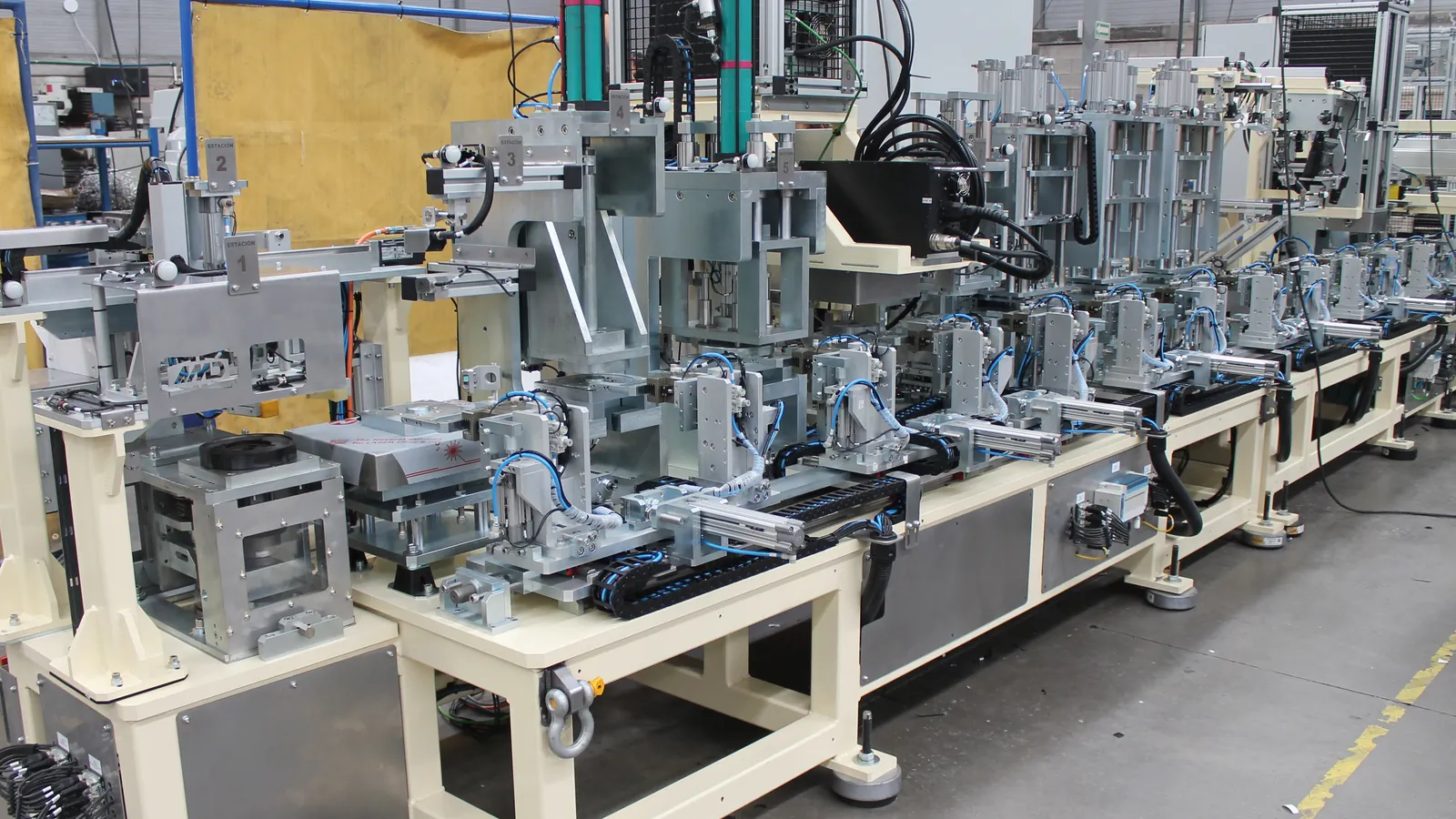

| Linear / pallet transfer | Larger parts, more operations, future expansion | 6–30 s | 6–40+ | Bosch Rexroth TS or custom conveyor; add or rearrange stations over the machine's life |
| Robotic assembly cell | Mixed-model, lower volume, frequent variants | 8–25 s | 1–6 robot reach zones | FANUC, ABB, KUKA, Yaskawa, or UR; flexible tooling and vision-guided picks |

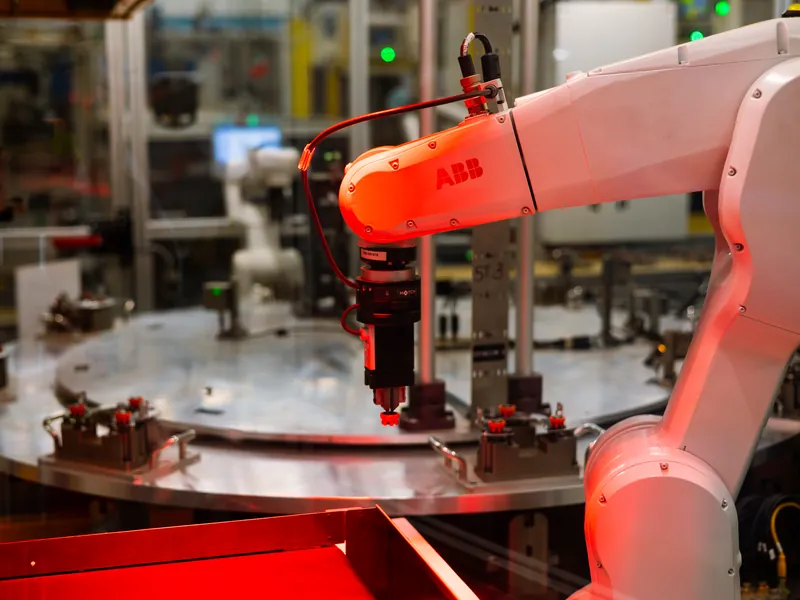

| Hybrid (dial + robot) | High volume with one or two complex variant ops | 3–8 s | 8–20 | Dial backbone with a robot handling the variant-rich or precision station |
| Multi-lane / parallel | Test or cure time longer than takt | Matches takt | 2–8 lanes | Multiple fixtures share or duplicate the slow operation |
We size architecture to volume, variant mix, and the slowest station — never the other way around.
Key components and technologies
- Joining — Promess, Kistler, and Schmidt servo presses (0.5–50 kN); Atlas Copco, Desoutter, and Weber screwdriving spindles; ultrasonic, laser, and resistance welders
- Dispensing — Nordson EFD, Graco, and Scheugenpflug volumetric or time-pressure valves for adhesives, sealants, and grease
- Feeding — RNA, Automation Devices, and Service Engineering vibratory bowls; Asyril Asycube and FlexiBowl vision-guided flex feeders for fragile or complex parts
- Robots — FANUC LR Mate / M-series, ABB IRB, KUKA KR Agilus, Yaskawa MotoMini, and Universal Robots collaborative arms
- Vision — Cognex In-Sight and VisionPro, Keyence CV-X / XG-X, FANUC iRVision integrated for guidance and verification
- Controls and safety — Allen-Bradley CompactLogix / ControlLogix, Siemens S7-1500, Beckhoff TwinCAT; dual-channel safety circuits per ISO 13849
| Subsystem | Typical hardware |
|---|---|
| PLC and HMI | Allen-Bradley + FactoryTalk / Ignition, or Siemens S7-1500 + WinCC |
| Servo and motion | Allen-Bradley Kinetix, Beckhoff, Rexroth IndraDrive |
| Pneumatics | SMC, Festo, Parker valve and cylinder packages |
| Vision lighting | Smart Vision Lights, Advanced Illumination |
| Safety | Pilz, Sick, Banner light curtains and safety controllers |
Integration, controls, and traceability
A modern assembly machine is also a data system. We design every AMD line to give your quality, engineering, and operations teams the records they need without bolt-on middleware.
- Per-part serialization — 2D barcode, DataMatrix, or RFID tied to every operation result
- Real-time SPC — X-bar/R and Cpk on critical force, torque, vision, and test parameters
- MES integration — OPC UA, MQTT, ODBC/SQL, or REST to Rockwell FactoryTalk, AVEVA, Ignition, SAP, and custom historians
- Recipe management — barcode-driven part-number recipes load every servo, torque, and threshold setpoint
- Audit-grade reporting — controlled-access exports and electronic batch records aligned to your quality system
Industries we serve
We build custom assembly machines for manufacturers across:
- Automotive — module, actuator, connector, and EV component lines
- Heavy equipment — valves, hydraulic assemblies, and powertrain components
- Electronics — sensor stacks, sealed enclosures, and PCB-level subassemblies
- Consumer products and appliances — multi-variant lines with frequent changeover
Why AMD Machines
We engineer the machine, not just integrate a robot. Mechanical, electrical, controls, vision, and fluid power are all under one roof, against the part on your bench and the takt on your floor.
- 30+ years of custom assembly automation and 2,500+ machines delivered
- One supplier for the servo press, robotic screwdriving, and functional test stations the line integrates
- In-house fixture and feeding engineering — including robotic cells and machine vision — designed against your actual parts, not just CAD
- FAT runoff at our facility using production components before the machine leaves the floor
Have a part print, a rate target, and a takt time? That is enough to start. Request a quote and we will scope the machine around your line.
Frequently asked questions
What is a custom automated assembly machine?
A custom automated assembly machine is a purpose-built production system engineered around one product family. It feeds, orients, joins, fastens, inspects, and unloads parts on a fixed cycle, with every operation verified and every result logged. Unlike off-the-shelf equipment, every nest, fixture, motion profile, and recipe is designed for your specific part geometry, tolerances, and cycle-time target.
How long does a custom assembly machine take to design and build?
A typical custom assembly system takes about six to nine months from signed purchase order to site acceptance. Simple single-station cells can ship in three to four months, while large multi-station lines with validation packages run ten to fourteen months. We provide a phase-gated schedule during the proposal so you can plan capacity, install windows, and operator training around real dates.
What cycle times can a custom assembly machine achieve?
Rotary dial machines typically run one and a half to six seconds per part because every station operates in parallel on each index. Linear transfer lines run five to thirty seconds per part with more stations and larger parts. Robotic cells fall in between depending on payload and reach. When the required test or joining time exceeds takt, we add parallel fixtures, lanes, or pre-load buffers so throughput still hits rate.
How much does a custom automated assembly machine cost?
Custom assembly machines typically range from about two hundred fifty thousand dollars for a single robotic cell to over two million dollars for a fully integrated multi-station line with inspection and traceability. The largest cost drivers are station count, cycle-time target, the precision and force required at each operation, and the level of in-process testing. We provide a budgetary range during concept review based on your part print and rate target.
Can a custom assembly machine handle multiple product variants?
Yes. We design for the product roadmap, not just the part on the bench today. Multi-variant systems use recipe-driven servo and torque parameters, quick-change nests with swap times under five minutes, and vision-guided robotic stations that handle variants without any mechanical changeover. Telling us about future variants during concept design is the cheapest place to add flexibility.
What controls platforms and robots do you standardize on?
We standardize on Allen-Bradley CompactLogix and ControlLogix PLCs with FactoryTalk View or Ignition HMIs for most applications, and Siemens S7-1500 or Beckhoff TwinCAT when the customer's facility standard requires it. Robot integrations cover FANUC, ABB, KUKA, Yaskawa, and Universal Robots, selected per cell based on payload, reach, cycle time, and the in-plant standard you maintain.
Can you integrate testing and traceability into the assembly machine?
Yes — and most of our machines do. We integrate leak test, functional test, machine vision, and laser or dot-peen marking inline so each part is verified before it leaves the cell. Every cycle is serialized, logged with the operator and timestamp, and pushed to your MES, historian, or quality database over OPC UA, MQTT, or direct SQL.
Do you provide validation documentation for regulated production?
Yes. For automotive programs we deliver PPAP, MSA, and Gauge R&R documentation aligned to IATF 16949. For aerospace and defense we support FAI and AS9100-aligned records. When the customer's quality system requires it, we provide IQ, OQ, and PQ protocols and execute FAT and SAT under those documents — the project manager assigned to your build has led similar packages before.
Let's Engineer Your Solution
Tell us about your part, cycle time, and quality targets. We've built 2,500+ machines over 30 years — chances are we've solved something similar.
